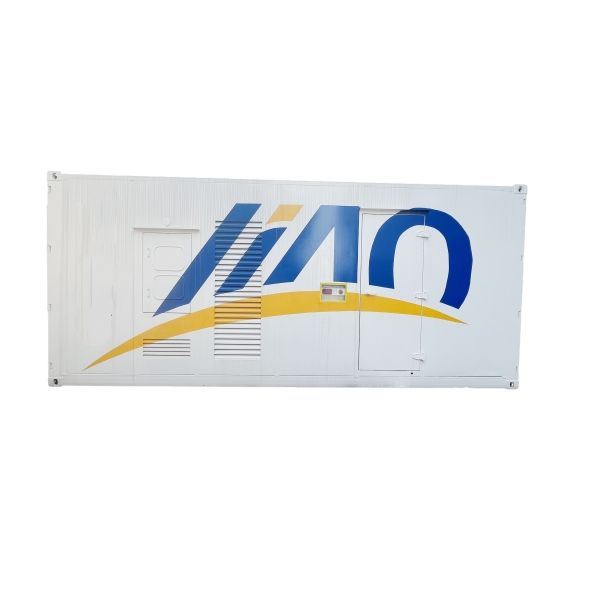

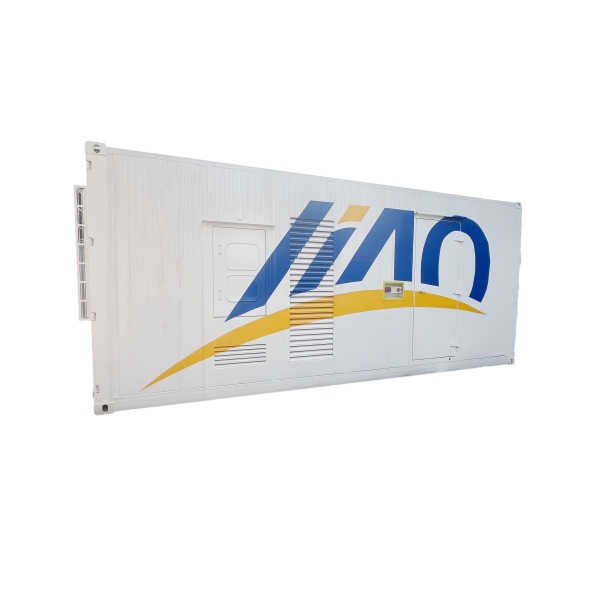

Hybrid Power System – Battery Energy Storage and Diesel Generator Set
| Battery Energy | 150kWh |
| Battery Rated voltage | 716.8V |
| Rated output | 450KW |
| Size | 6058mm*2400mm*2500mm |
| Weight | 24250lb |
| Protection grade | IP 54 |
| Noise | ≤75dB |
| Working environment temperature | -20°C~50°C |
| Storage temperature | -20°C~65°C |
| Use altitude | <3000m |
| Allowable relative humidity | 5%~95% |
| Communication | Ethernet, RS485, CAN2.0, 4G wireless |
Product Introduction
Hybrid energy storage solutions are often a requirement for many sustainable power projects in remote locations where grid power is not available.

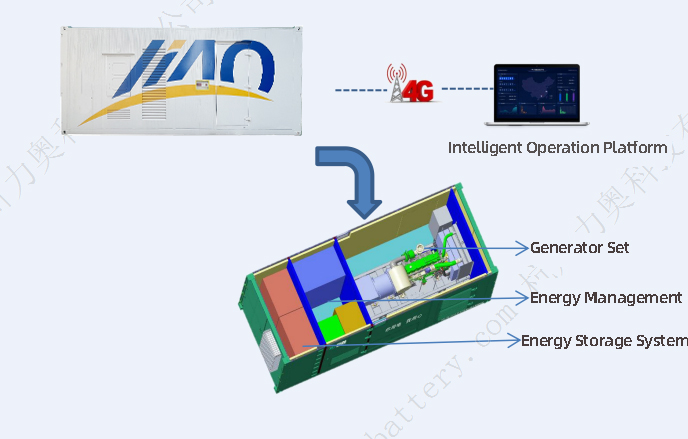

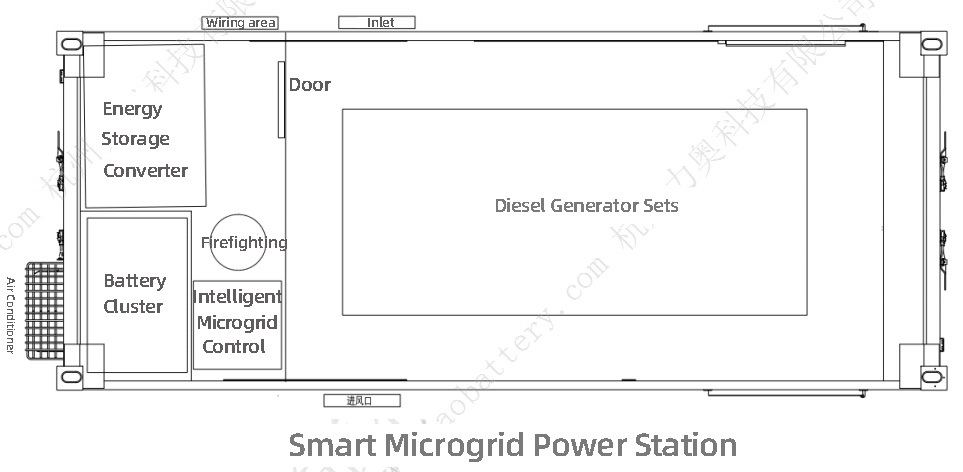

The container contains generator sets, battery systems, PCS, control cabinets, air conditioners, containers and auxiliary systems, etc.
The main equipment of the system includes
● 1 set 300KW (main) diesel generator set
● 1 set of 250KW/150KWh
The energy storage system contains
● 1 set of 150kWh lithium iron phosphate battery
● 1 set of 250KW energy storage bidirectional converter,
● 1 intelligent microgrid integrated control cabinet.
The container also contains auxiliary equipment such as temperature and smoke detectors, fire extinguishing facilities (oil engine cabin fire extinguishers), air conditioning systems, emergency lights, etc. to ensure a safe and stable working environment for lithium batteries and to enable remote monitoring.
Advantages
1. Costs savings
Reduce the direct power supply cost of the diesel engine by more than 30%, effectively reducing the backup capacity of the unit.
2. Lower emissions
With the diesel generator not required to run continuously, its emissions output can dramatically decrease.
3. Silent operation
The diesel engine charges the energy storage system when the load is low, and discharges the energy storage system when the load is high.
In addition, through peak cutting and valley filling, the unit can be operated near the optimal load curve.
Product Details
Our Battery Energy Storage (BES) units - also known as hybrid generators, hybrid battery units, Battery Energy Storage Systems (BESS) or simply "hybrids" - are an increasingly popular way to reduce the environmental impact of traditional temporary power. BES units are designed to significantly cut fuel consumption and emissions, providing our customers a more economical and sustainable power solution.
LIAO battery energy storage systems can be operated in combination with diesel generator sets (also called hybrid systems).
The battery can be used to store excess energy produced by the generator set or other renewable energy sources such as solar panels. This stored energy can be used when the generator set is not in operation or when the demand for electricity is high. The combination of a battery storage system and a diesel generator set can provide a more efficient and reliable power supply for residential or industry applications. Here's a breakdown of how they operate:
Charging the Battery: Battery systems are recharged by converting and storing electrical energy when the demand for electricity is low or when the grid is powered. This can be accomplished through solar panels, the grid, or even the generator set itself.
Power Demand: When the demand for power in the home increases, the battery system acts as the primary power source to provide the required power. It releases the stored energy to power the home, which can help reduce reliance on generators and save fuel.
Genset Kick-in: If the power demand exceeds the capacity of the battery system, the hybrid system will send a start signal to the diesel generator set. The generator set provides power to meet the additional demand while charging the battery.

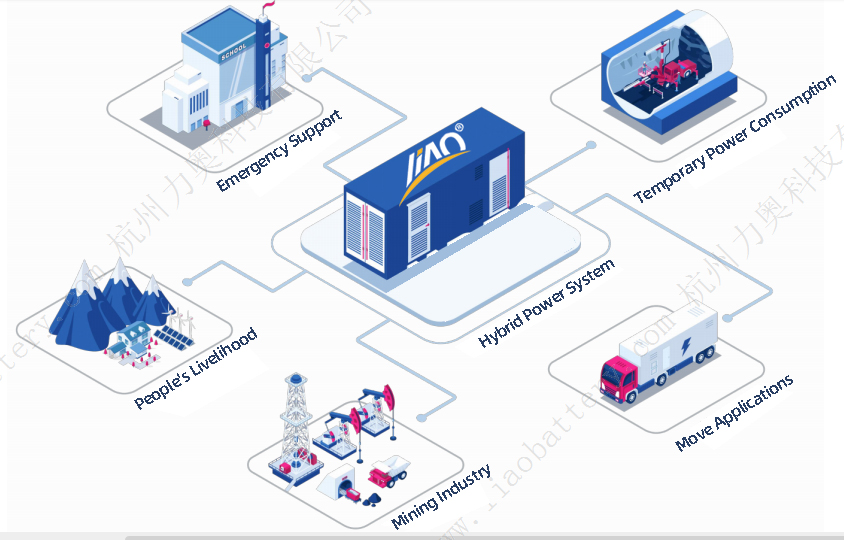

Application
★Home Energy Storage
★Solar Energy Storage
★Industrial Energy Storage
★Backup Power Supply
