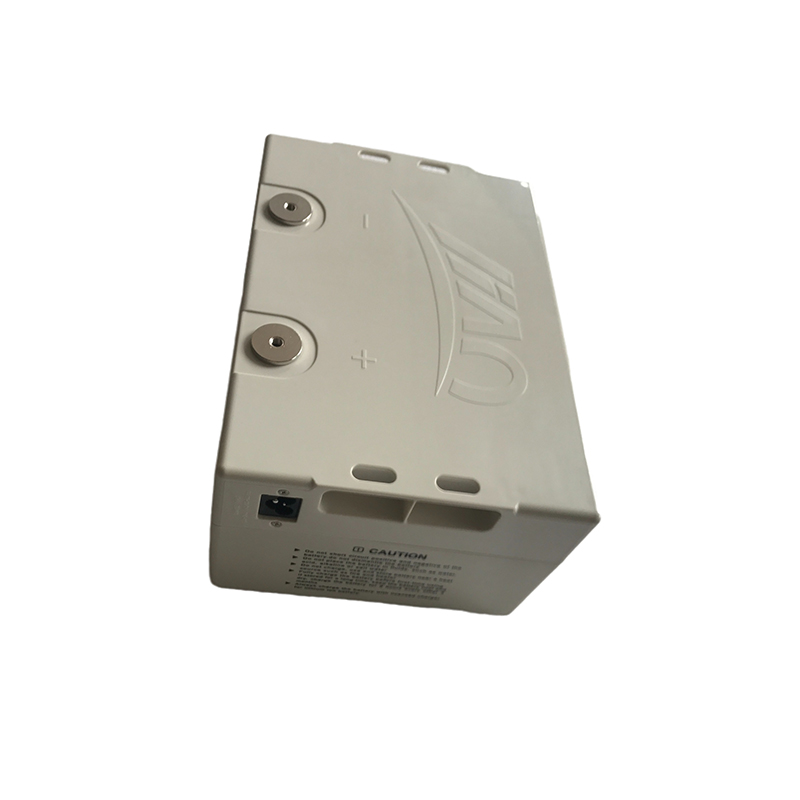

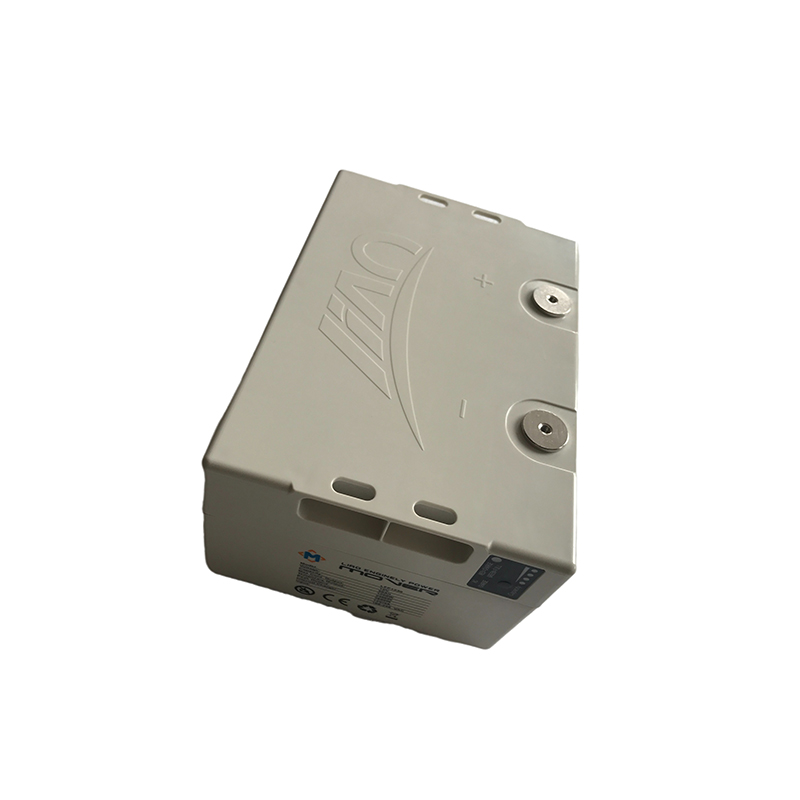

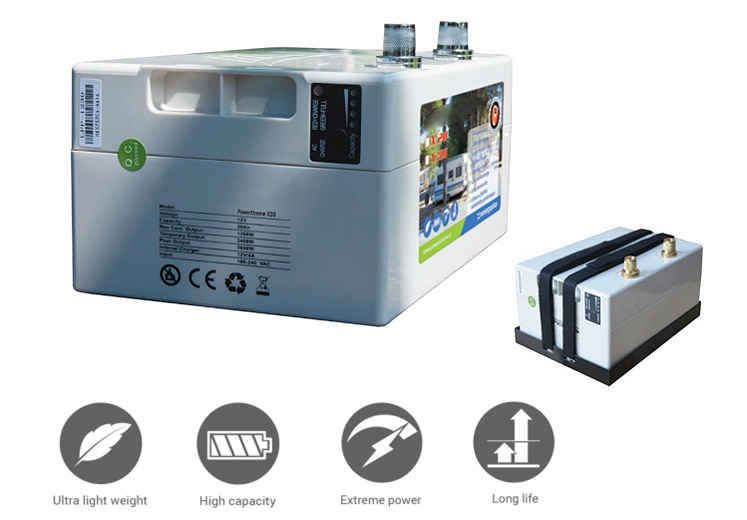

Caravan mover battery LAXpower-1230 12V 30Ah LiFePO4 battery pack with built-in charger and SOC
| Model No. | LAXpower-1230 |
| Nominal voltage | 12V |
| Nominal capacity | 30Ah |
| Max. continuous current | 100A |
| Momentary current | 200A |
| Peak current | 300A |
| Max. charging current | 2C |
| Charging voltage | 14.6V |
| Charging current | 4A |
| AC input | 100-240V |
| Charge temperature | 0°C~45°C |
| Discharge temperature | -20°C~60°C |
| Storage temperature | -10°C~45°C |
| Weight | 5.6kg |
| Cycle life (80%DOD) | ＞2000 times |
| IP class | IP21 |
| Dimension | 150mm*275mm*120mm |
| Application | Caravan move, power supply. |
1. The ABS casing 12V 30Ah LiFePO4 battery packs for caravan mover.
2. Extreme power and ultra light weight.
3. Long intensive use and maximum safety.
4. Built-in charger and low self-discharge rate.
5. Long service life and outstanding performance.
6. Specially designed for caravan move.
7. This product is expected to be very popular in the EU market for years.
Parameters and Application
Hangzhou LIAO is a professional manufacture of prismatic LiFePO4 Lithium cells. Battery packs are assembled using these cells. A lightweight body has been selected for the LAXpower-1230 where the cells, charger and battery management have been incorporated into 1 product.
The aim of this lightweight battery is the offering of a comfortable solution for the user of a caravan mover with a limited load of 30 Ah and with a very limited weight. This battery is able to deliver high currents, is lightweight and therefore very well suited to this purpose.
The battery has more than enough charge to perform one movement action of the caravan. The mover can be used up to 50 minutes during heavy use (35 A continuous). In extreme use (100 A) the mover can be used for up to approximately 18 minutes.

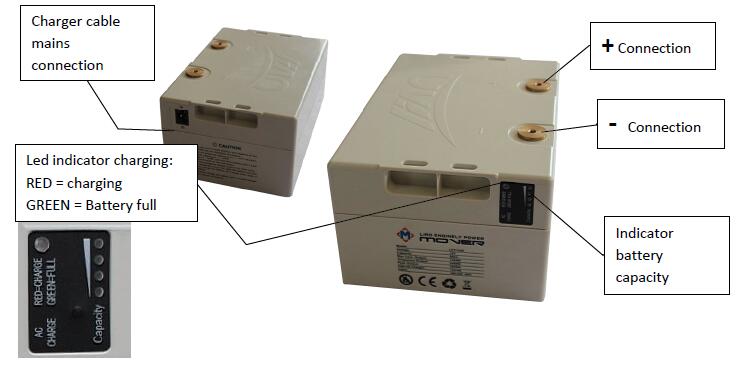

If did for a longer period the battery will automatically switch off and will need to reset itself. Because the battery is made from a Lithium LiFePO4 chemistry, it is possible to completely discharge the battery unlike lead acid batteries. Once the battery is empty it will switch itself off and will then have to be recharged for the next use. Charging takes place through a charger cable to mains connection.
LiFePO4 BATTERY COMPANY
Hangzhou LIAO Technology Co.,Ltd
Was established in 2009, with many years of experience We are a professional and leading manufacturer specializedin LiFePO4 batteries.
Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly. If you are looking for a custom battery pack manufacturer in China, please contact us for more details.
Production area
Production capacity
Global customers
15
YEARS OF
LIFEPO4 BATTERY
1. Are you factory?
A: Yes, we are factory at Zhejiang China. Welcome to visit our company at any time.
2. Do you have current sample in stock?
A: Usually we don't have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.
3.0EM & ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What's the delivery time for mass production?
A: Usually 15-25days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.
5.What is your MOQ?
A: 1PCS sample order can be acceptable for testing
6.What is the normal lifetime about battery?
A: More than 800 times for lithium ion battery; more than 2,000 times for LiFePO4 lithium battery.
7.Why choose LIAO Battery?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 15 years-experience for manufacturing LiFePO4 battery.
Hangzhou LIAO Technology Co.,Ltd is professional and leading manufacturer specialized in LiFePO4 batteries and Exporting of Green Clean Energy and relevant products.
The lithium batteries produced by the company has good safety performance, long cycle life and high efficiency.
Products range from LiFePo4 batteries, , BMS board, Inverters, as well as other relevant electrical products which can be widely used in ESS/UPS/Telecom Base Station/Residential and commercial energy storage system/ Solar Street Light/ RV/ Campers/ Caravans/ Marine /Forklifts/ E-Scooter/ Rickshaws/ Golf Cart/ AGV/ UTV/ ATV/ Medical machines/ Electric wheelchairs/Lawn mowers, etc.
The lithium iron phosphate battery products have been exported to USA, Canada, UK, France, Germany, Norway, Italy, Sweden, Switzerland, Australia, New Zealand, Jamaica, Barbados, Panama, Costa Rica, Russia, South Africa, Kenya, Indonesia, the Philippines and other countries and regions.
With over 15 years’ experience and rapid growth, Hangzhou LIAO Technology Co.,Ltd is committed to providing our esteemed customers with reliable quality lithium iron phosphate batteries systems and integration solutions and will continue to innovate and improve its renewable energy products to help the world create a more eco-friendly, cleaner and brighter future.
