Hot selling big capacity 3.2V 100Ah LiFePO4 battery cell for energy storage

Hot selling big capacity 3.2V 100Ah LiFePO4 battery cell for energy storage

Short Description:

Model No.:F100-29173202

Nominal voltage:3.2V

Nominal capacity:100Ah

Internal resistance:≤2mΩ


Product Detail

Company Profile

Product Tags

Model No.:F100-29173202

Nominal voltage:3.2V

Nominal capacity:100Ah

Internal resistance:≤2mΩ

Max. continuous charge current:1C

Max. continuous discharge current:1C

Max. impulse discharge current:2C

Cycle life:≥2000 times

Charge temperature:0°C~55°C

Discharge temperature:-20°C~55°C

Storage temperature:-20°C~55°C

Weight:2180g

Dimension:28.82mm*147.70mm*202.47mm

Application:Make battery packs for power supply application like EV

1.The big capacity 3.2V 100Ah prismatic LiFePO4 battery cell with good performance.
2. Light weight: It is only around 1/3 weight compared to the lead acid batteries.
3. Nice performance on safety: It is almost the safest lithium battery type recognized in this industry.
4. Lithium iron phosphate is a new type of electrode material for lithium-ion batteries. It is characterized by large discharge capacity, low price, non-toxicity and no environmental pollution. Countries around the world are racing to achieve industrial production.
5. Specially designed for power supply application like EV.

EV Introduction

Pure electric vehicles, compared with fuel vehicles, the main difference (different) lies in the four major components, drive motor, speed controller, power battery, on-board charger. Compared with gas stations, it consists of shared ultra-fast charging stations. The quality difference of pure electric vehicles depends on these four components, and their value is also dependent on the quality of these four components. The use of pure electric vehicles is also directly linked to the selection and configuration of the four major components.

The speed of pure electric vehicles per hour, and the starting speed depends on the power and performance of the drive motor. The length of the driving range is dependent on the capacity of the on-board power battery. The weight of the on-board power battery depends on the choice of power battery such as lead-acid, zinc Carbon and lithium batteries have different sizes, specific gravity, specific power, specific energy, and cycle life. This is dependent on the manufacturer's positioning and use of the vehicle grade, as well as market definition and market segmentation.

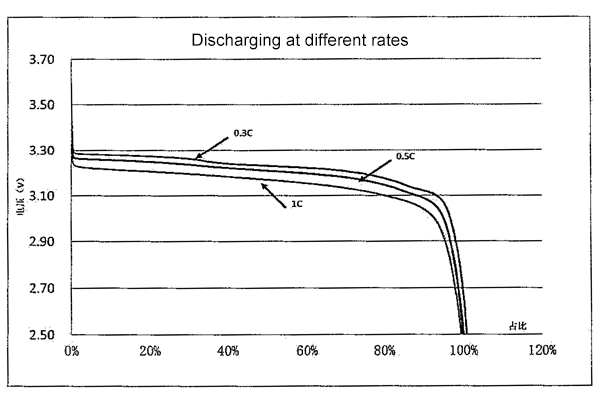

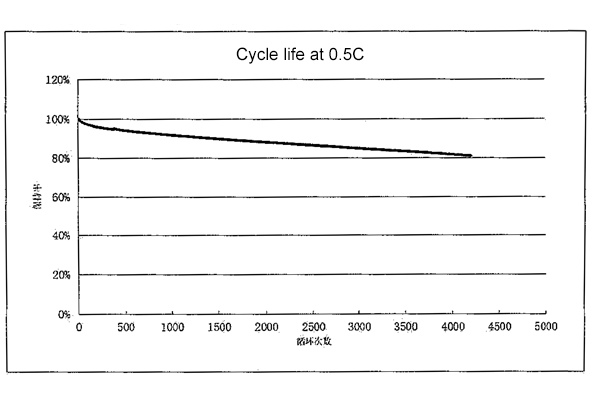

3.2V
3.2V cell
官网详情版本2_01
官网详情版本2_02
官网详情版本2_03
官网详情版本2_04
官网详情版本2_05
官网详情版本2_06
官网详情版本2_07
官网详情版本2_08

  • Previous:
  • Next:

  • Hangzhou LIAO Technology Co.,Ltd is professional and leading manufacturer specialized in LiFePO4 batteries and Exporting of Green Clean Energy and relevant products.

    The lithium batteries produced by the company has good safety performance, long cycle life and high efficiency.

    Products range from LiFePo4 batteries, , BMS board, Inverters, as well as other relevant electrical products which can be widely used in ESS/UPS/Telecom Base Station/Residential and commercial energy storage system/ Solar Street Light/ RV/ Campers/ Caravans/ Marine /Forklifts/ E-Scooter/ Rickshaws/ Golf Cart/ AGV/ UTV/ ATV/ Medical machines/ Electric wheelchairs/Lawn mowers, etc.

    The lithium iron phosphate battery products have been exported to USA, Canada, UK, France, Germany, Norway, Italy, Sweden, Switzerland, Australia, New Zealand, Jamaica, Barbados, Panama, Costa Rica, Russia, South Africa, Kenya, Indonesia, the Philippines and other countries and regions.

    With over 15 years’ experience and rapid growth, Hangzhou LIAO Technology Co.,Ltd is committed to providing our esteemed customers with reliable quality lithium iron phosphate batteries systems and integration solutions and will continue to innovate and improve its renewable energy products to help the world create a more eco-friendly, cleaner and brighter future.
