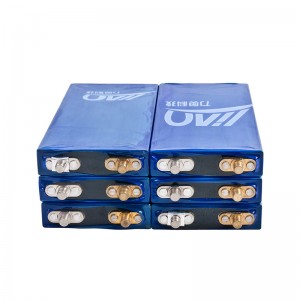

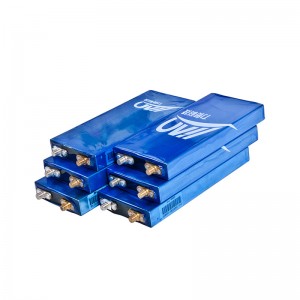

Bolt type prismatic 3.2V 10Ah LiFePO4 battery cell for power supply and energy storage

Bolt type prismatic 3.2V 10Ah LiFePO4 battery cell for power supply and energy storage

Short Description:

Model No.F10-1565150

Nominal voltage3.2V

Nominal capacity10Ah

Internal resistance≤3.5mΩ


Product Detail

Product Tags

Model No.F10-1565150

Nominal voltage3.2V

Nominal capacity10Ah

Internal resistance≤3.5mΩ

Max. continuous charge current1C

Max. continuous discharge current3C

Max. impulse discharge current5C

Cycle life≥2000 times

Charge temperature:0°C~45°C

Discharge temperature-20°C~60°C

Storage temperature-20°C~45°C

Weight275g

Dimension15mm*65mm*150mm

ApplicationMake battery packs for power supply and energy storage systems

1. Prismatic LiFePO4 battery cell using positive and negative stud design, for easy assembling and maintenance.

2. The shell of the LiFePO4 battery cell is made of alumium, which can have better Cooling effect, also have a certain mechanical strength and long life.

5

3. Battery cell using lamination technology, has the following advantages:

①High space utilization efficiency of high energy density batteries. The 3.2V 10Ah LiFePO4 battery cell:  32Wh;  275g;   116.4Wh/kg;  15 mm*65mm*150mm

②Low internal resistance. Our 10Ah battery cell Internal resistance: ≤3mΩ,

Nearly 50% lower than most of other manufacturers.

③Excellent large current discharge performance. Sustainable 5C discharge, and the max pulse discharge current can be 8C.

1

④ Good performance of the large current charging. The maximum possible can be 2C charge while the cycle life of the battery will not be affected.

2

4. A wide range temperature for battery cells discharge. Good discharge performance in high temperature and low temperature. The 0.1C discharge can be used at extremely low temperatures -40℃.

3

5. Long cycle life.  After a long match of materials and processes, developed a long-life lifepo4 battery packs:25±5℃,100%DOD,1C cycle 2000times,Capacity keeps more than 80%.

4

6. We keep strict cells’ grouping and matching: Capacity, Resistance, Constant current ratio, Discharge platform, Open-circuit voltage and related parameters.
